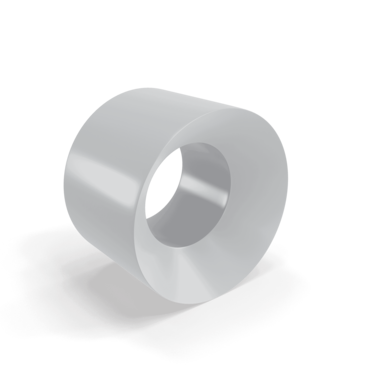

Urja Enterprise Agricultural Pipe - Reducing Bush Fitting (Finolex)

The Finolex Reducer Bush is designed to reduce the internal diameter of agricultural pipelines efficiently and reliably. Made from durable PVC-U and manufactured under IS 7834 standards, this fitting ensures seamless, leak-resistant transitions—ideal for optimizing flow in irrigation and water distribution systems.

Applications

• Perfect for branching off to smaller pipelines or adapting different diameter sections.

• Suitable across agriculture, irrigation, and domestic systems.

Available Sizes (Line-by-Line):

• 25 × 20 mm (¾″ × ½″) – 10 kg/cm²

• 32 × 25 mm (1″ × ¾″) – 10 kg/cm²

• 40 × 32 mm (1¼″ × 1″) – 10 kg/cm²

• 50 × 25 mm (1½″ × ¾″) – 10 kg/cm²

• 50 × 32 mm (1½″ × 1″) – 10 kg/cm²

• 50 × 40 mm (1½″ × 1¼″) – 10 kg/cm²

• 63 × 40 mm (2″ × 1¼″) – 6 kg/cm²

• 63 × 50 mm (2″ × 1½″) – 6 kg/cm²

• 75 × 40 mm (2½″ × 1¼″) – 6 kg/cm²

• 75 × 50 mm (2½″ × 1½″) – 10 kg/cm²

• 75 × 63 mm (2½″ × 2″) – 6 kg/cm²

• 90 × 63 mm (3″ × 2″) – 10 kg/cm²

• 90 × 75 mm (3″ × 2½″) – 6 kg/cm²

• 110 × 63 mm (4″ × 2″) – 6 kg/cm²

• 110 × 75 mm (4″ × 2½″) – 6 kg/cm²

• 110 × 90 mm (4″ × 3″) – 6 kg/cm²

• 160 × 140 mm (6″ × 5″) – 6 kg/cm²

• 180 × 140 mm (7″ × 5″) – 6 kg/cm²

• 180 × 160 mm (7″ × 6″) – 6 kg/cm²

• 200 × 110 mm (8″ × 4″) – 6 kg/cm²

• 200 × 140 mm (8″ × 5″) – 6 kg/cm²

• 200 × 160 mm (8″ × 6″) – 6 kg/cm²

• 200 × 180 mm (8″ × 7″) – 6 kg/cm²

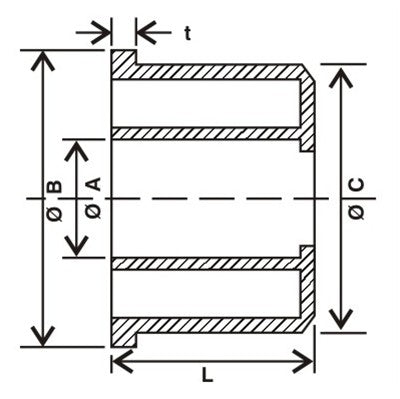

Size Chart
