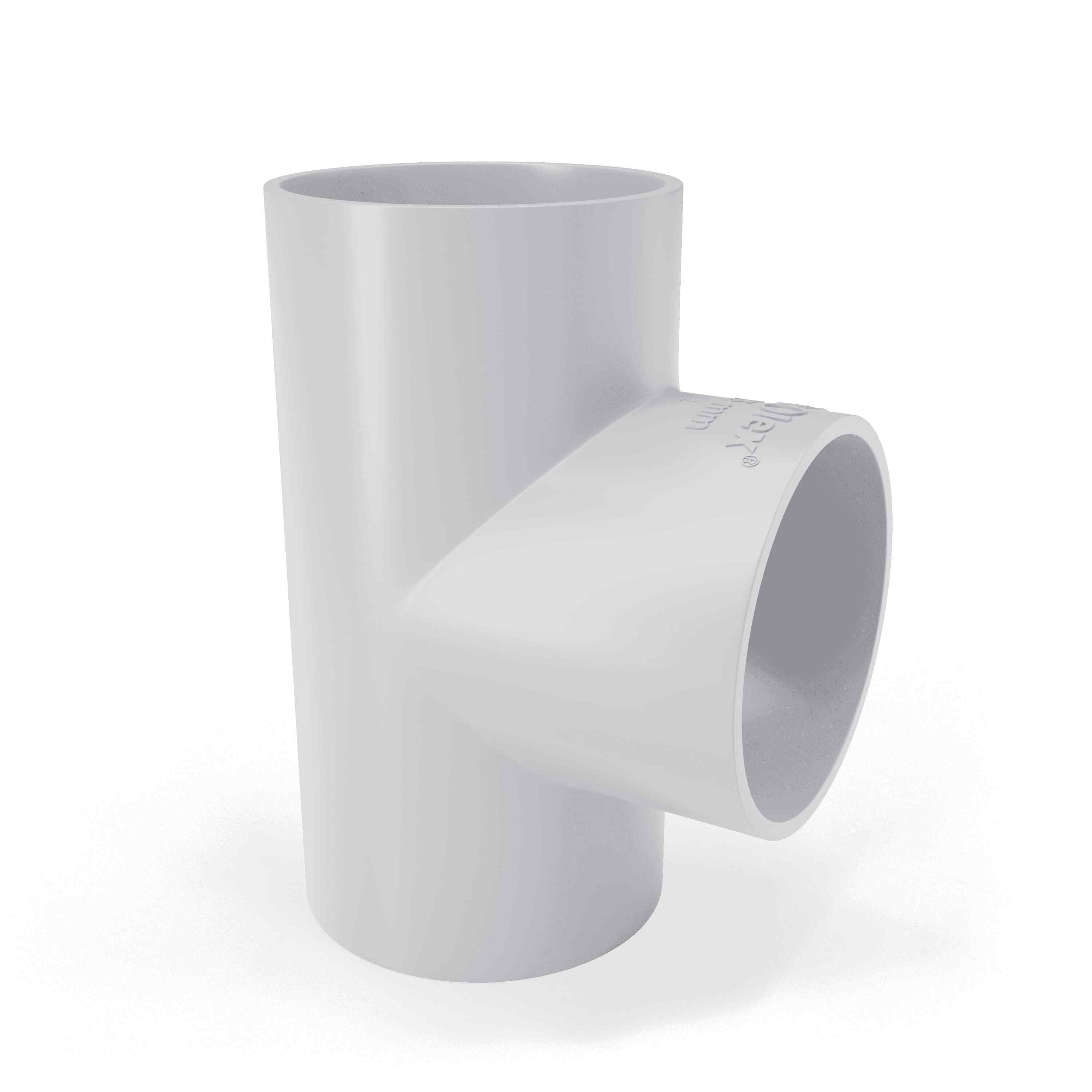

Urja Enterprise Agricultural Pipes - PVC Tee Fittings (Finolex)

The Finolex PVC Tee Fitting ➕ is expertly crafted to branch off service or bypass lines from the main pipeline while ensuring excellent hydraulic performance and leak-free operation. Built as per IS 7834 standards, this fitting is ideal for agricultural, irrigation, and domestic water applications, delivering long-lasting durability and seamless connections.

✔ Key Features:

• Durable PVC-U construction provides resistance against corrosion, scaling, and chemicals.

• Ensures reliable, leak-proof joints for uninterrupted water flow.

• Accommodates varying pressure requirements, up to 10 kg/cm² depending on size.

• Smooth flow behavior ensures minimal pressure loss.

• Quick and intuitive installation—ideal for rural or on-field setup.

📏 Available Sizes (Line-by-line):

• 20 mm (½″) – Pressure Rating: 10 kg/cm²

• 25 mm (¾″) – Pressure Rating: 10 kg/cm²

• 32 mm (1″) – Pressure Rating: 10 kg/cm²

• 40 mm (1¼″) – Pressure Rating: 10 kg/cm²

• 50 mm (1½″) – Pressure Rating: 10 kg/cm²

• 63 mm (2″) – Pressure Rating: 6 kg/cm²

• 63 mm (2″) – Pressure Rating: 10 kg/cm²

• 75 mm (2½″) – Pressure Rating: 6 kg/cm²

• 75 mm (2½″) – Pressure Rating: 10 kg/cm²

• 90 mm (3″) – Pressure Rating: 6 kg/cm²

• 90 mm (3″) – Pressure Rating: 10 kg/cm²

• 110 mm (4″) – Pressure Rating: 6 kg/cm²

• 110 mm (4″) – Pressure Rating: 10 kg/cm²

• 140 mm (5″) – Pressure Rating: 6 kg/cm²

• 140 mm (5″) – Pressure Rating: 10 kg/cm²

• 160 mm (6″) – Pressure Rating: 6 kg/cm²

• 160 mm (6″) – Pressure Rating: 10 kg/cm²

• 180 mm (7″) – Pressure Rating: 6 kg/cm²

• 200 mm (8″) – Pressure Rating: 6 kg/cm²

• 200 mm (8″) – Pressure Rating: 10 kg/cm²

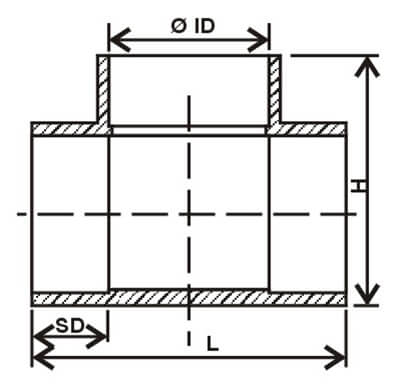

Size Chart
